Force on a Current-Carrying Conductor

Motor Effect

Place a straight wire horizontally between the poles of a strong magnet so that it lies at 90° to the magnetic field. Connect the wire to a DC power supply through a switch. When the current flows, the wire will experience a force and move.

This demonstrates the motor effect and the force which moves the object is known as the Lorentz force. Reversing the current or magnetic field reverses the direction of the force:

1. If the current is reversed, the force changes direction.
2. If the magnetic field is reversed, the force also changes direction.

There are two mnemonics that help us determine the relative directions of current, magnetic field and the force: the Right-Hand Palm Rule, which was used in the video above, and Fleming's Left-Hand Rule.

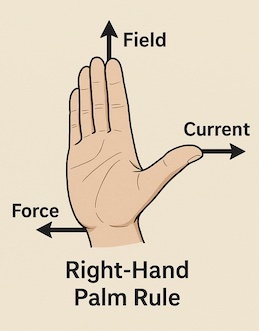

Right-Hand Palm Rule

The Right-Hand Palm Rule is a helpful mnemonic used to determine the direction of the force acting on a current when it travels through a magnetic field. Use your right hand with the palm and fingers straightened:

• Thumb – Points in the direction of the conventional current flowing from + to - terminals of the battery.
• Fingers – Point in the direction of the magnetic field (from North to South)
• Palm – Faces in the direction of the force acting on the positive charge

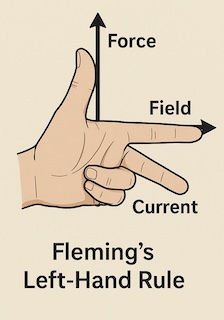

Fleming’s Left-Hand Rule

Fleming’s Left-Hand Rule helps determine the direction of the force acting on a current-carrying conductor placed at right angles to a magnetic field. Use your left hand:

• Thumb – Direction of Force ($F$)
• Index finger – Magnetic Field ($B$), pointing from the North pole to South pole
• Middle finger – Current ($I$), conventional current flowing from + to - terminals of the battery

By aligning any two of these quantities at right angles, you can determine the third.

Note: as we are dealing with vectors in 3-dimensions, we need to introduce two symbols for when the vectors cannot be represented on a plane surface such as the screen of the device you are using right now, or the piece of paper on which these vectors are drawn. A cross represents a vector with direction into the plane while a circle with a dot represents a vector with direction coming out of the plane.

Vector going away (image on left) and vector coming towards you (image on right)

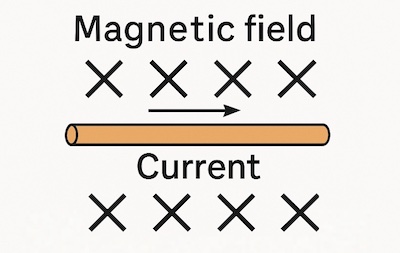

Checking for Understanding A straight wire carrying current is placed horizontally between the poles of a magnet, with the magnetic field directed into the page. The current flows from left to right. In which direction will the wire move? Upwards Downwards Into the page Out of the page Reveal Answer Solution: A. Upwards Use Fleming’s Left-Hand Rule: Point your index finger into the page/screen and your middle finger to the right. Your thumb will point upwards along the plane of the page/screen. Therefore, the wire experiences a force upwards.

Force Between Parallel Currents

Two long, straight, parallel wires carrying currents exert magnetic forces on each other because each wire creates a magnetic field that acts on the moving charges in the other wire. The direction of the force depends on the direction of the currents:

• Currents in the same direction → wires attract.
• Currents in opposite directions → wires repel.

The force per unit length between two long parallel wires increases with both currents and decreases as the distance between them increases. In practical terms, if either current is doubled, the force doubles; if the separation is doubled, the force halves.

Force on a Beam of Charged Particles

When a beam of charged particles, such as electrons or protons, travels through a magnetic field, each individual particle experiences a magnetic force. This force arises due to the motion of the charged particles being perpendicular to the magnetic field, and it acts in a direction that is at right angles to both the velocity of the particle and the direction of the magnetic field.

This force does not change the speed of the particle, but continuously changes its direction, causing the particle to follow a circular or helical path. The radius of the path depends on the particle’s mass, speed, charge, and the strength of the magnetic field.

Using the simulation below, change the charge of the particle or the strength of the magnitude field and observe how the deflection of the charged particle changes.
